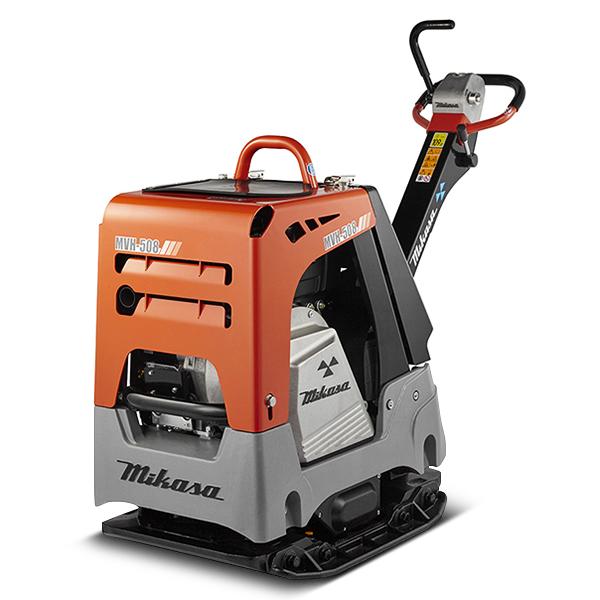

Mikasa 14.1HP 650mm x 900mm Diesel Reversible Plate Compactor - FT28DSZN-UNIT (MVH-508)

Mikasa® 650mm x 900mm  Diesel Reversible Plate Compactor - FT28DSZN-UNIT (MVH-508)

Mikasa Reversible Plate Compactors are ideal for the efficient compaction of sand, gravel and cohesive soils in trenches and large construction projects. They offer high compaction capacity, superior travel speeds and feature fully hydraulic direction control for easy direction change. They are ideally suited for civil construction works, drainage contractors and the rental industry.

Features:

• Engine Protection Frame & Lifting Hook: Robust frame provides superior protection against engine damage, also fitted with a built in lifting hook for safe on site handling.
• Enclosed Belt Guard: Provides superior protection of drive belt and clutch against dust & debris
• Anti Vibration & Adjustable Handle: Reduces operator fatigue by significantly reducing handle vibration. Handle is also height adjustable for improved operator comfort.
• Forward/Reverse Control Lever (Patented): The control lever has been engineered with a built-in actuator that provides seamless and smooth transition between both forward and reverse travel motion
• Tough & Rugged Body: Full engine protection frame that provides superior protection to the engine, air filtration system and battery against unwanted damage. Special hinge design allows easy access to the engine for ease of maintenance and servicing
• Removable Extension Plates: Easily adjust the width of the plate to match your job requirements
• Offers high compaction capacity & superior travel speeds
• Ideally suited for civil construction works, drainage contractors and the rental industry

Specifications:

• Max rated power: 14.1HP
• Engine: Hatz 1D81S
• Plate size (without extension plates)(L x W): 900mm x 650mm
• Plate size (with extension plates)(L x W): 900mm x 800mm
• Fuel type: Diesel
• Centrifugal force (max): 65kN
• Vibration freuqency: 4,150VPN
• Max travel speed: 29m/min
• Max gradeability: 35%
• Max compacted area: 1392m²/h
• Operating weight (without extension plates): 525kg
• Operating weight (with extension plates): 567kg
