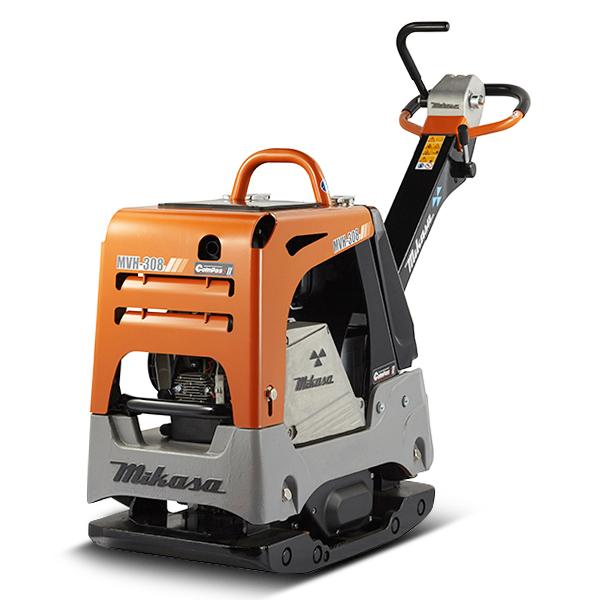

Flextool 6.7HP 445mm x 860mm Mikasa® Diesel Reversible Plate Compactor - FT272783-UNIT (MVH-308D)

Flextool 6.7HP 445mm x 860mm Mikasa® Diesel Reversible Plate Compactor -  FT272783-UNIT (MVH-308D)

Mikasa Reversible Plate Compactors are ideal for the efficient compaction of sand, gravel and cohesive soils in trenches and large construction projects. They offer high compaction capacity, superior travel speeds and feature fully hydraulic direction control for easy direction change. They are ideally suited for civil construction works, drainage contractors and the rental industry.

Features:

• Engine Protection Frame & Lifting Hook: Robust frame provides superior protection against engine damage, also fitted with a built in lifting hook for safe on site handling.
• Enclosed Belt Guard: Provides superior protection of drive belt and clutch against dust & debris
• Anti Vibration & Adjustable Handle: Reduces operator fatigue by significantly reducing handle vibration. Handle is also height adjustable for improved operator comfort.
• Forward/Reverse Control Lever (Patented): The control lever has been engineered with a built-in actuator that provides seamless and smooth transition between both forward and reverse travel motion
• Tough & Rugged Body: Full engine protection frame that provides superior protection to the engine, air filtration system and battery against unwanted damage. Special hinge design allows easy access to the engine for ease of maintenance and servicing
• Removable Extension Plates: Easily adjust the width of the plate to match your job requirements
• Cyclonic Air Filtration System: For superior air filtration to lengthen service internals and improve engine protection
• Engine Hour Meter: Hour meter for management of service intervals
• Offers high compaction capacity & superior travel speeds
• Ideally suited for civil construction works, drainage contractors and the rental industry

Specifications:

• Max rated power: 6.7HP
• Engine: Yanmar L70N
• Plate size (without extension plates)(L x W): 860mm x 445mm
• Plate size (with extension plates)(L x W): 860mm x 595mm
• Fuel type: Diesel
• Centrifugal force (max): 45kN
• Vibration freuqency: 4,400VPN
• Max travel speed: 27m/min
• Max gradeability: 35%
• Max compacted area: 963m²/h
• Operating weight (without extension plates): 341kg
• Operating weight (with extension plates): 361kg
