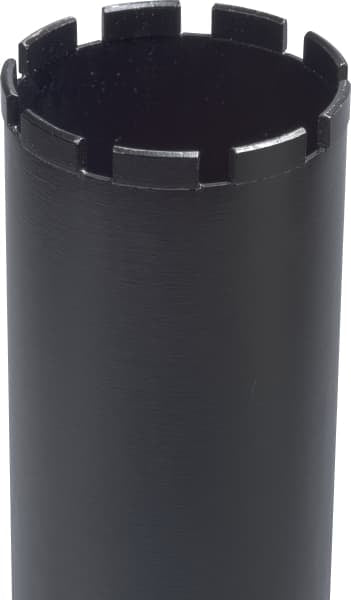

Klingspor Diamond Core Drill 82mm DK 654 B Supra - 325775
Description:
The drill bit with R ½“ connection UNC DK 654 B Supra by Klingspor is an exceptional option for fast drilling into mineral-based materials, especially
- concrete.
Its performance and ruggedness make the drill bit with R ½“ connection UNC DK 654 B Supra an indispensable tool in construction above and below ground as well as in road building. The premium diamond abrasives provide for even and effortless stock removal on concrete.
Drill bit with R ½“ connection UNC DK 654 B Supra: Very fast cutting – long service life

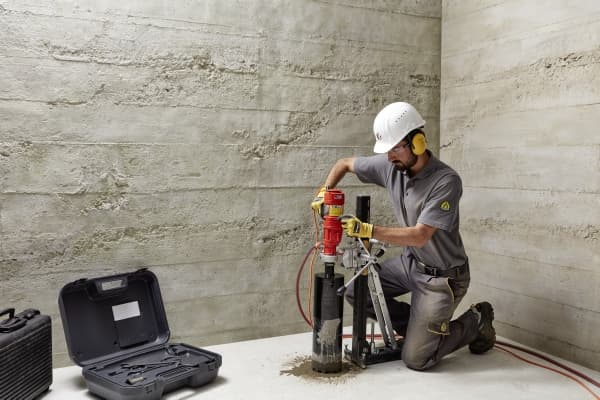

The drill bit with R ½“ connection UNC DK 654 B Supra drills into concrete with superior speed and reliability. Its first-rate aggressiveness ensures excellent controllability without requiring too much force. Its outstanding service life makes this drill bit an ideal tool for continuous operation at the construction site. It can be clamped into many electric or hydraulic machines that come with a 1¼“ thread - a drill stand should be used for this purpose. This product always guarantees the full level of the required on-the-job safety - even when used for drilling large hole diameters of up to 300 millimetres. The drill bit conforms to European safety standard EN 13236. As an alternative to the DK 654 B Supra model, customers can decide on the model DK 612 B Supra with a ½“ thread adapter and a diameter of up to 200 millimetres. Users in need for a tool capable of continuous operation under the most extreme conditions will find their match in the DR 912 B Special model, which is available for hole diameters of up to 52 millimetres.
Powerful diamond tools for the highest requirements
Klingspor has managed to improve the performance of their diamond tools significantly after years of research and development. Klingspor offers the matching spare parts if the roof-shaped segments become damaged: The replacement segment DE 600 B can substitute individual segments in a snap.
Continuous performance increase
Research, development and continuous testing have resulted in a steady performance increase of up to 45% in diamond tools made by Klingspor.
Reliable segments
As we make them ourselves in-house, we can align the cores and edges of our diamond tools until they match each other perfectly. This way, we can guarantee maximum performance regardless of the application for which the user plans on using our tools.
Toughest safety standards
Just as all other products made by Klingspor, our new diamond tools comply with the strict oSa guidelines and are guaranteed to comply with the European safety standard EN 13236.

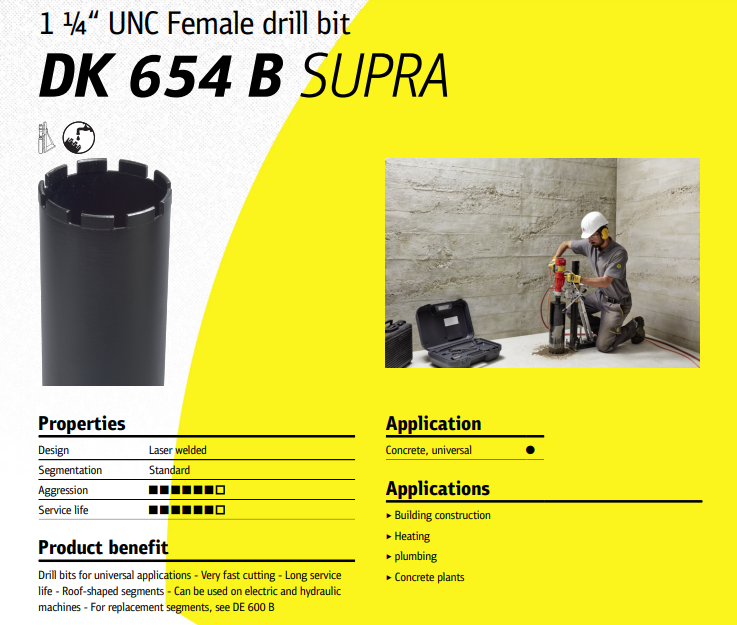

Products Specifications:
Properties
Class: Supra
Segmentation: Standard serration
Design: Laser welded
Materials
Concrete
Applications
Building Construction
Concrete plants
Heating, plumbing
Product Features:
- Diameter/mm: 82
- Bore/mm: 31.75
- Holding device: Thread 1 1/4"
- Width of segments/mm: 3.5
- Height of segments/mm: 11
- Version of the rim: standard serration
- Effective length/mm: 450
