Klingspor DS 300 B Extra 115mm - 325361

Continuous performance increase

Research, development, and continuous testing have resulted in a steady performance increase of up to 45% in diamond tools made by Klingspor.

Reliable segments

As we make them ourselves in-house, we can align the cores and edges of our diamond tools until they match each other perfectly. This way, we can guarantee maximum performance regardless of the application for which the user plans on using our tools.

Toughest safety standards

Just as all other products made by Klingspor, our new diamond tools comply with the strict OSA guidelines and are guaranteed to comply with the European safety standard EN 13236.

Description:

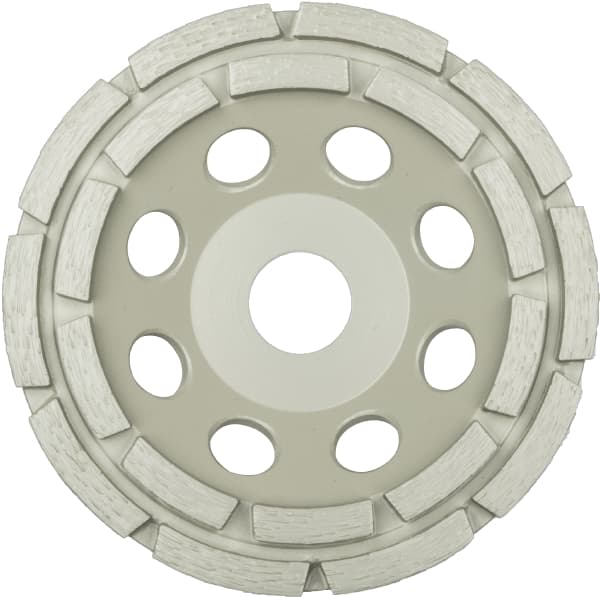

The diamond cup grinding wheel DS 300 B Extra stands out with its excellent aggressiveness and service life. It is used in the following fields of application:

• garden and landscape construction,
• building yards,
• construction above and below ground and
• road building.

The two-row cup grinding wheel displays outstanding removal rates. Construction materials, concrete and screed can be cut without effort. Operation requires only minimum force and, in consequence, makes working exceptionally comfortable. What is more, Klingspor offers this product at an excellent price-performance ratio. Customers can purchase the diamond cup grinding wheel DS 300 B Extra in different diameters. Also available for the cup grinding wheel is an M14 adapter.

Diamond tools of the Extra class

Customers opting for the 300 product line acquire diamond cup grinding wheels for demanding tasks that deliver brand-name quality at an attractive price. Product lines 600 and 900 are intended for those who need professional performance without compromise. The tools included in the Extra class are also recommended for do-it-yourselfers who do not require continuous operation.

A maximum safety level is guaranteed

The diamond cup grinding wheel DS 300 B Extra has been tested thoroughly for safety. The tests performed by Klingspor are based on the strict guidelines issued by the oSa. Independent product tests, safety audits conducted by an external auditor and regular production inspections contribute to a high level of safety during use. What is more, the manufacturing process conforms to European safety standard EN 13236.

Products Specifications:

Properties

Class: Extra
Segmentation: Standard
Design: Brazed

Materials

Concrete
Screed
Construction materials

Applications

Building Construction
Concrete plants
Floor tilers
Natural stone businesses

Product Features:

• Diameter(mm): 115
• Bore(mm): 22.23
• Vmax(m/s): 80
• Max.RPM: 13300
• Width of segments (mm): 8.2
• Height of segments (mm)): 5.5
• Version of the rim: Double row
